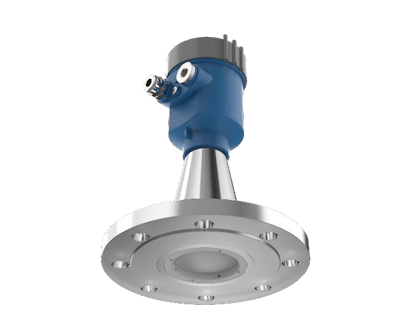

- 80 GHz FMCW radar level transmitter for continuous measurement of powdered and bulk solids
- Suitable for liquids (corrosive chemicals), bulk solids, and powdered solids
- Operates between 77 GHz and 81 GHz for high focus
- Measurement accuracy ±2 mm with a narrow ±3° beam angle
- Up to 50 m
- PTFE antenna with 4″ universal flange and air purge system; 4” flange size
- Flange material options include SS304 or SS316 with PTFE antenna
- Max process temperature 85 °C, normal atmospheric pressure
- 4–20 mA, RS485 (Modbus-RTU), or HART; two-wire 24 V DC (22–30 V)
- IP67 ingress protection, explosion-proof Ex db ia IIC T6 Gb
